Wrinkle and surface Strain Assessment Function
3 point You can quantitatively evaluate wrinkles and surface strains by simulating a gage curvature meter or stoning.
Key Points of Simulation & Use Cases
- On-site surface Strain Evaluation can be Simulated on JSTAMP

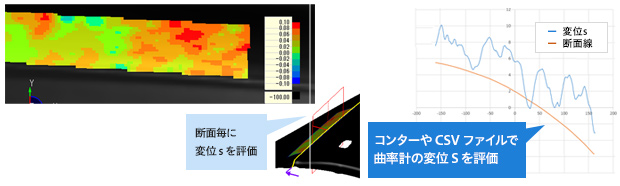

3 point Checking with a gage curvature meter
3 point You can specify the measuring line of the gauge and display the wrinkle depth as a contour.
3 point Reproduction of gauges

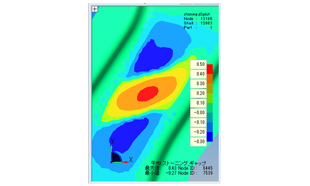

Evaluation Simulating Stoning
You can evaluate stoning by collectively (both front and back) the convex and concave portions of blank.
Reproduction of stoning
