In recent years, dummy injuries have been directly assessed in the automotive crash, but in order to obtain accurate assessments, it is essential to set up seat models and constraint equipment models. J-SEATdesigner allows you to manage a wide variety of solution cases with model files in the database and automatically assemble them based on the settings you invoke. In addition, since various regulations and assessment information can be called from the database, there is no need for users to enter numerical values individually. H-point measurement and pre-simulation of seated solution can be performed.
J-SEATdesigner is an integrated system for seat design that strongly supports design engineers in the automotive crash, which is becoming larger and more complex with the aim of improving accuracy.
J-SEATdesigner helps designers and solution technicians respond to a wide range of vehicle body modeling, legislation, and assessments required by the Automotive crash.

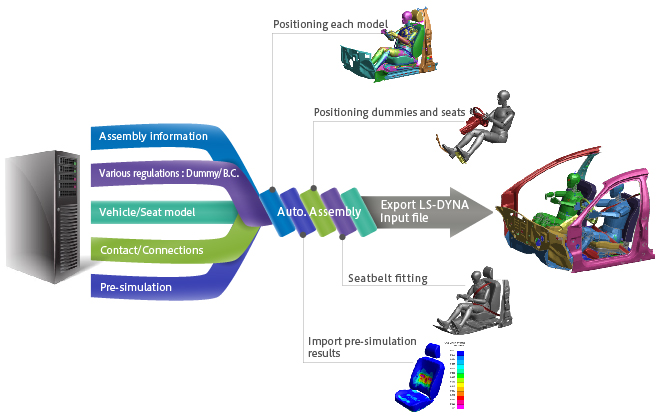

For example, managing a mix of dummy and boundary condition. In conjunction with object-oriented relational databases, you can manage solution modeling and the relevant information required for auto-assembly. With automatic model assembly, you can load a model from the database and automatically align each model by calling a previously created assembly information definition file. Assembled models are output in Ansys LS-DYNA solution input file format. In addition, it is possible to generate an "assembly information definition file" for use in an automated model assembly, and to perform the H-point measurement solution and seating solution required by the automotive crash in advance.
Auto assembly of the sled analysis model Unify management of the simulation cases in the database
