Evaluating Trim Conditions

Use Cases Highlights

Angle-checking is available for post-panel forming that is wrinkled or springback, etc.
Picking point on the trim line displays the degree and optimal trim direction at that position

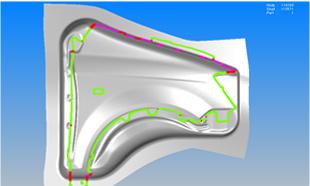

Condition checking using inflation trimline is also available.

Forming Evaluations the calculated panel-trim condition

It's particularly powerful for panels with wrinkles and springback.
By picking point on the trim line, you can view the angle and optimum trim direction at that position, as well as check the condition using inflation trim line.

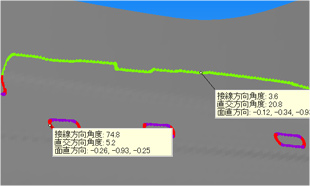

Check the angle of the picked point and the direction perpendicular to surface.

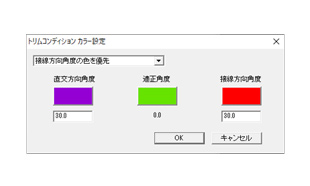

Adjust judgment angle and color
